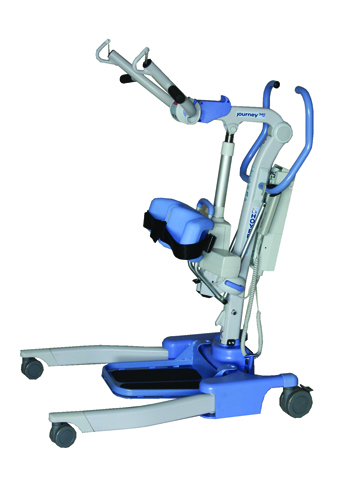

Hoyer Journey Patient Stand Aid

The JourneyÊs unique folding design stands unaided for easy storage * Compact design also provides an ideal size for transporting * It is the only standaid on the market that folds * The unique adjustable cowhorn mechanism supports a range of resident heights and sizes * Ideal for transfers from low chairs * Sculpted knee pad is easily adjusted for ultimate patient comfort * Adjustable with one hand * Bump guard provides additional protection against base plates and paint finishes in your facility * Specifications: Safe Working Load………………………………. 341 lbs………155 kgs Maximum Overall Length………………………… 39.4 …… 1000 mm Minimum Overall Length…………………………. 36.8 …….. 935 mm Maximum Overall Height…………………………. 63.0 …… 1600 mm Minimum Overall Height………………………….. 44.5 …….1130 mm Maximum Height to Attachment Point……….. 60.2 …… 1530 mm Minimum Height to Attachment Point………… 28.4 …….. 720 mm Turning Radius………………………………………. 45.1 …….1145 mm Legs Open – External Width ……………………. 38.2 …….. 970 mm Legs Open – Internal Width……………………… 34.5 …….. 875 mm Legs Closed – External Width ………………….. 27.0 …….. 685 mm Legs Closed – Internal Width …………………… 22.2 …….. 590 mm Widest Point (between support handles)……. 18.8 …….. 475 mm Overall Height of Legs………………………………. 4.3 ………110 mm Ground Clearance……………………………………. 1.2 ………. 30 mm Front Twin Casters…………………………………… 3.0 ………. 75 mm Rear Braked Casters………………………………… 4.0 …….. 100 mm
